Requirements

• A browser that supports chrome extensions (Manifest V3), (Chrome recommended)
• OBS or any stream software that supports browser sources

Installing the extension

Install the latest version from the chrome web store

Music on stream on the chrome web store

Setting up the extension

Before starting you must create an Instance, instances are a way to identify you and separate clients, they store your configuration and the current state of the extension

To create an instance simply hit the Create Instance button in the extension options menu

Accessing the extension settings

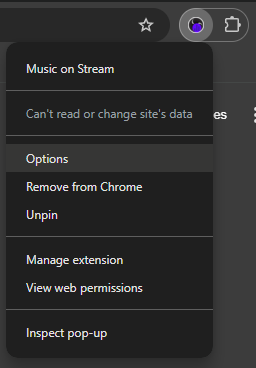

Right click the extension logo and press Options

Create an instance by pressing the Create Instance button in the extension options menu

Instances are a way to identify you and separate clients, they store your configuration and the current state of the extension

Create an instance

Token


Instance link

Once you hit the Create Instance button you should see the Token and the Overlay Link fields filled. The Token field shows your instance's token while the Overlay Link field shows an url to your overlay webpage.

You will need the Overlay link later to configure the overlay in your streaming software.

note

You can get a new instance at any time by clicking again the Create Instance button

---

Setting up OBS

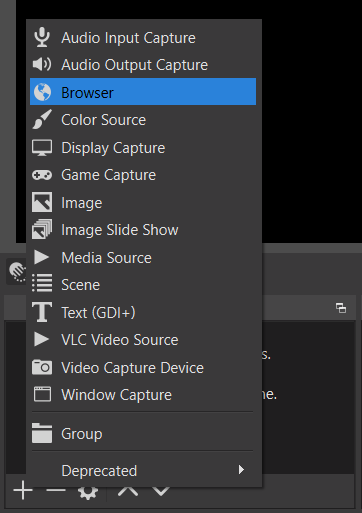

First create a new browser source

Now configure the Browser Source with this configuration:

• URL: [Your Overlay Link]
• Width: 1000px
• Height: 1000px
• Shutdown source when not visible: Yes

note

The Width and Height parameters represent the size of the window OBS is using, modify these values to get an overlay with the wanted dimensions
